MVS0940X35S100 CARB DRILL
Item #: MB0310547519
Brand: Mitsubishi Materials USA
Model #: 10547519

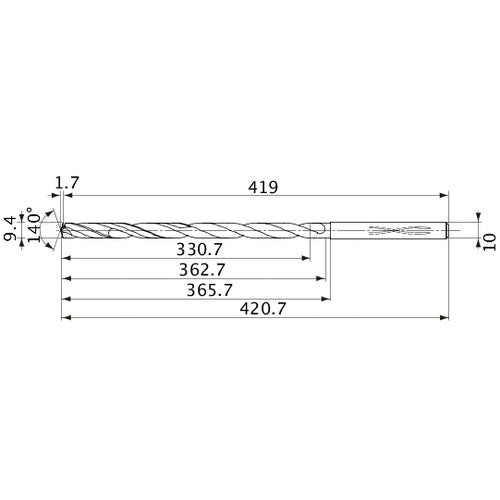

| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9.4 mm |
| Flute Helix Angle (FHA) | 27 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.4 mm |
| Cutting Edge Material | Carbide |
| Length Group | 35xD |
| Grade | DP1020 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Series/List # | MVS |
| Head Length (LH) | 365.7 mm |
| Usable Length (LU) | 330.7 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 362.7 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 420.7 mm |
| Point Length (PL) | 1.7 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 419 mm |
