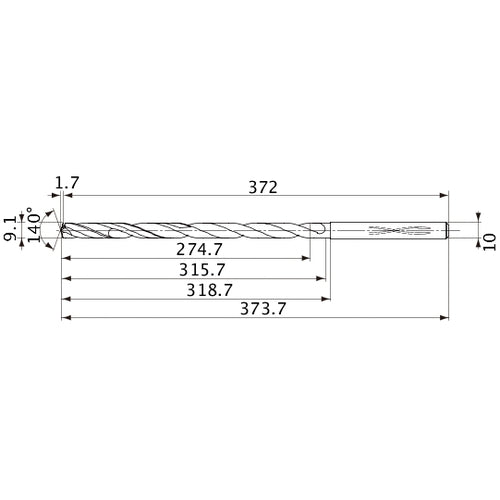

MVS0910X30S100 DP1020 9.1 mm Dia. × 10 mm Shank × 315.7 mm Flute Length × 373.7 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB0310548448
Brand: Mitsubishi Materials USA
Model #: 10548448
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9.1 mm |
| Flute Helix Angle (FHA) | 27 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.1 mm |
| Cutting Edge Material | Carbide |
| Length Group | 30xD |
| Grade | DP1020 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Series/List # | MVS |
| Head Length (LH) | 318.7 mm |
| Usable Length (LU) | 274.7 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 315.7 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 373.7 mm |
| Point Length (PL) | 1.7 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 372 mm |
| Feature | New grade DP1020 offers long tool life for a wide range of work materials.,Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6) |
