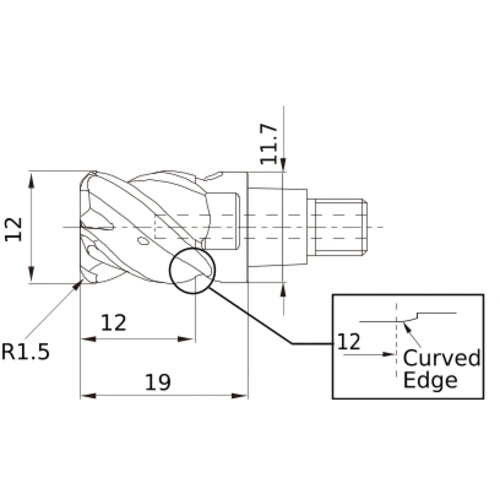

IMX12C4HV120R15012S EP7020
Item #: MB0310563113
Brand: Mitsubishi Materials USA
Model #: 10563113
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Functional Length (LF) | 19 mm |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Grade | EP7020 |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Corner Radius (RE) | 1.5 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 12 mm |
| Series/List # | iMX_C4HV_S |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm |
| End Shape | Corner Radius |
