IMX10C4HV110R05011
Item #: MB0310563380
Brand: Mitsubishi Materials USA
Model #: 10563380

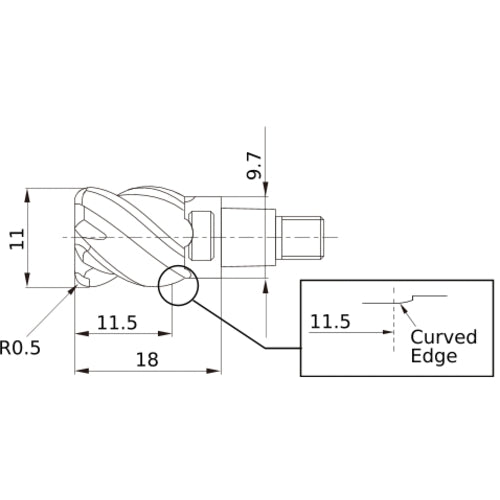

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 11 mm |
| Functional Length (LF) | 18 mm |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Grade | EP7020 |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 11.5 mm |
| Series/List # | iMX_C4HV |
| Connection Diameter Machine Side (DCONMS) | 9.7 mm |
| End Shape | Corner Radius |
