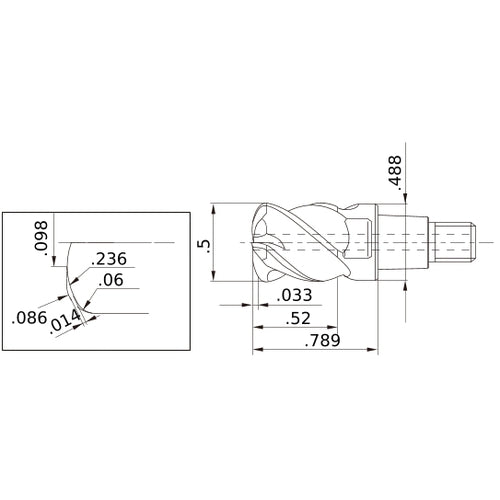

IMX12C4FD0500MC
Item #: MB0310565506
Brand: Mitsubishi Materials USA
Model #: 10565506
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Grade | EP7020 |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Corner Radius (RE) | 0.06″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.033″ |
| Series/List # | iMX_C4FD_C_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.488″ |
| End Shape | Corner Radius |
| Functional Length (LF) | 0.789″ |
| Ramping Angle Maximum (RMPX) | 3.6 Degrees |
