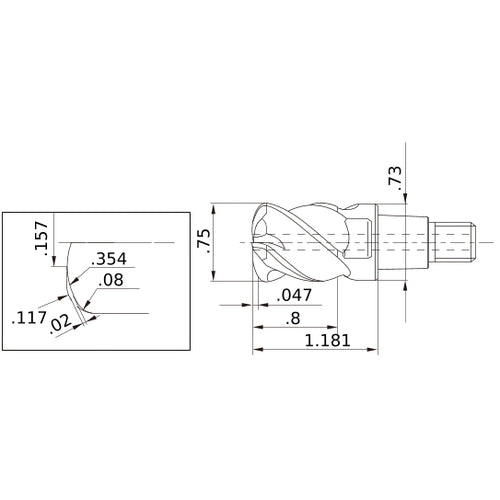

IMX20C4FD0750MC
Item #: MB0310565520
Brand: Mitsubishi Materials USA
Model #: 10565520
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Grade | EP7020 |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Corner Radius (RE) | 0.08″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.047″ |
| Series/List # | iMX_C4FD_C_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.73″ |
| End Shape | Corner Radius |
| Functional Length (LF) | 1.181″ |
| Ramping Angle Maximum (RMPX) | 3.6 Degrees |
