MP4JCD3/16
Item #: MB0310579596
Brand: Mitsubishi Materials USA
Model #: 10579596

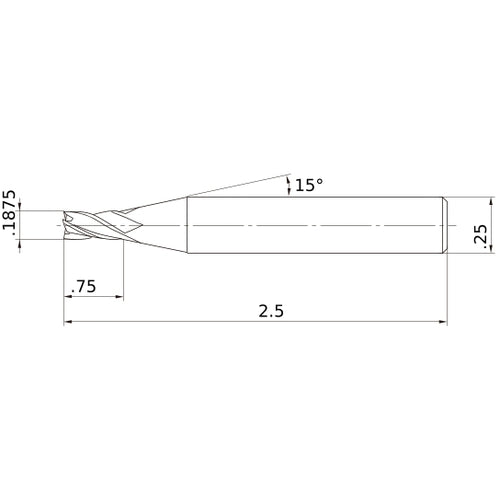

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Length Group | Semi Long |
| Overall Length (OAL) | 2-1/2″ |
| Decimal Equivalent | 0.1875″ |
| Coating | MS plus |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | MP4JC_INCH |
| End Shape | Center Cutting |
