MP4MCD5/16
Item #: MB0310579725
Brand: Mitsubishi Materials USA
Model #: 10579725

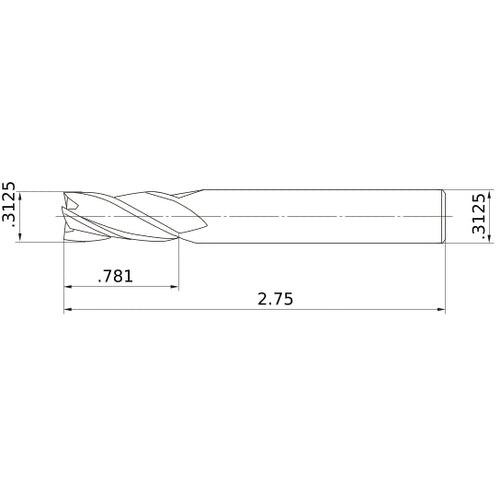

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 0.781″ |
| Length Group | Medium |
| Overall Length (OAL) | 2-3/4″ |
| Decimal Equivalent | 0.3125″ |
| Coating | MS plus |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | MP4MC_INCH |
