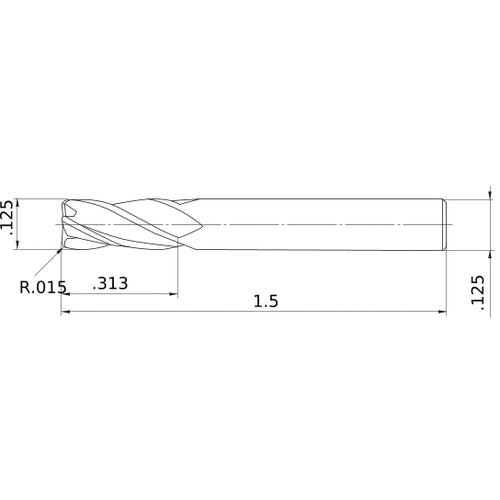

MP4MRBD1/8R015
Item #: MB0310579763
Brand: Mitsubishi Materials USA
Model #: 10579763
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Corner Radius (RE) | 0.015″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 0.313″ |
| Length Group | Medium |
| Overall Length (OAL) | 1-1/2″ |
| Decimal Equivalent | 0.125″ |
| Coating | MS plus |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | MP4MRB_INCH |
| End Shape | Corner Radius |
