IMX12B3FV12009
Item #: MB0310580004
Brand: Mitsubishi Materials USA
Model #: 10580004

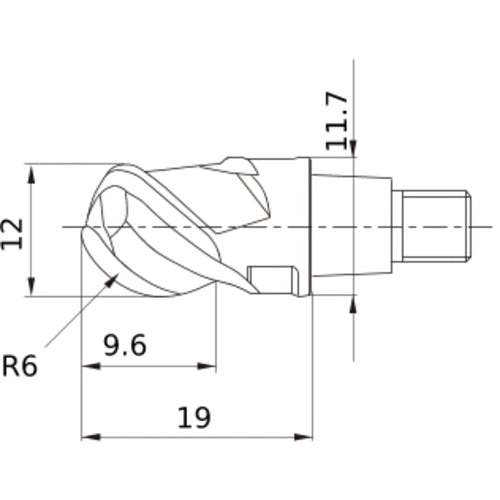

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Flute Helix Angle (FHA) | 45 Degrees |
| Applicable Material | Steel | Hard Materials |
| Grade | EP8120 |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Corner Radius (RE) | 6 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 9.6 mm |
| Series/List # | iMX_B3FV |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm |
| End Shape | Ball Nose |
| Functional Length (LF) | 19 mm |
