IMX20B3FV20016
Item #: MB0310580028
Brand: Mitsubishi Materials USA
Model #: 10580028

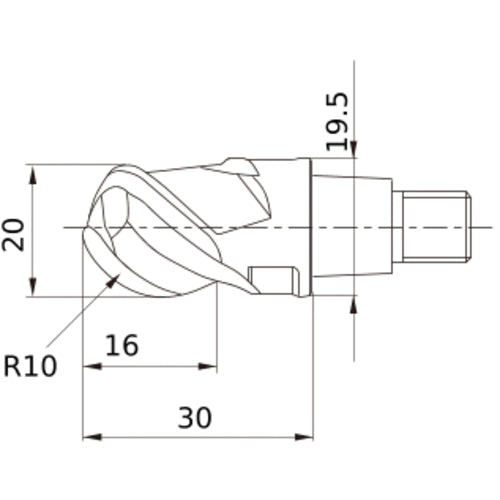

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 20 mm |
| Flute Helix Angle (FHA) | 45 Degrees |
| Applicable Material | Steel | Hard Materials |
| Grade | EP8120 |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Corner Radius (RE) | 10 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 16 mm |
| Series/List # | iMX_B3FV |
| Connection Diameter Machine Side (DCONMS) | 19.5 mm |
| End Shape | Ball Nose |
| Functional Length (LF) | 30 mm |
