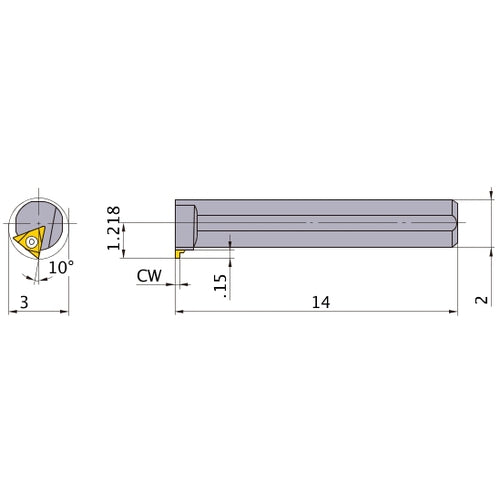

S32-STHNR-4 BORING BAR
Item #: MB03106610
Brand: Mitsubishi Materials USA
Model #: 106610
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 2″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 14″ |
| Rake Angle Radial (GAMF) | 10 Degrees |
| Functional Width (WF) | 1.218″ |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 3″ |
| Cutting Depth Maximum (CDX) | 0.15″ |
