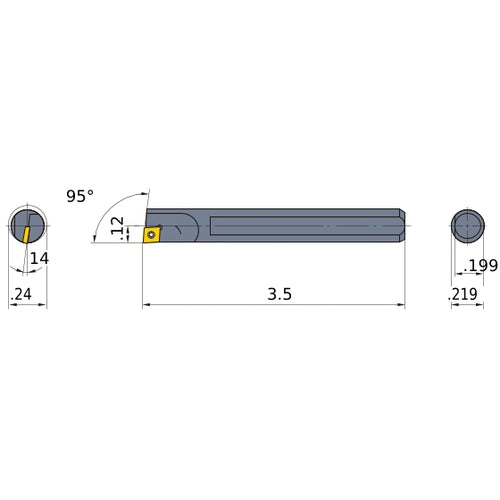

M-SCLCR-073 BORING BAR
Item #: MB03171897
Brand: Mitsubishi Materials USA
Model #: 171897
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.219″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 3.5″ |
| Frontal Edge Angle | 95 Degrees |
| Shank Height (H) | 0.199″ |
| Rake Angle Radial (GAMF) | 14 Degrees |
| Functional Width (WF) | 0.12″ |
| Series/List # | M-SCLC_INCH |
| Minimum Bore Diameter (DMIN) | 0.24″ |
| Measurement Type | Inch |
