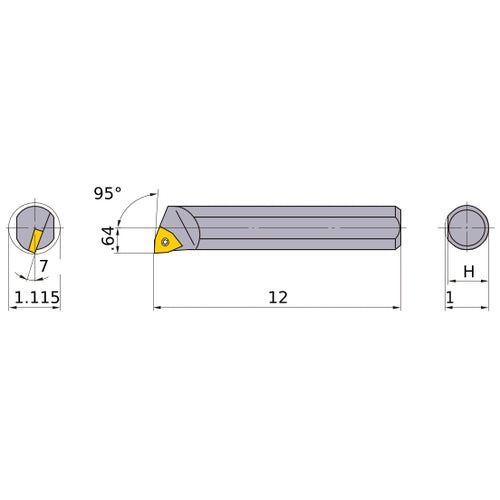

S-SWUCL-163 BORING BAR
Item #: MB03181331
Brand: Mitsubishi Materials USA
Model #: 181331
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Frontal Edge Angle | 95 Degrees |
| Functional Length (LF) | 12″ |
| Rake Angle Radial (GAMF) | 7 Degrees |
| Functional Width (WF) | 0.64″ |
| Series/List # | S-SWUC_INCH |
| Minimum Bore Diameter (DMIN) | 1.115″ |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
