AQXR264SA25S INDX EM
Item #: MB03210665
Brand: Mitsubishi Materials USA
Model #: 210665

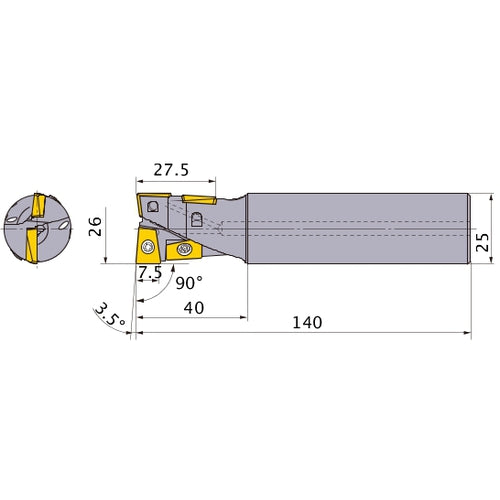

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 26 mm |
| Functional Length (LF) | 140 mm |
| Cutting Diameter (DC) | 26 mm |
| Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 4 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 27.5 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Series/List # | AQX |
| Head Length (LH) | 40 mm |
| Measurement Type | Metric |
