FSWL110R BAR
Item #: MB03229956
Brand: Mitsubishi Materials USA
Model #: 229956

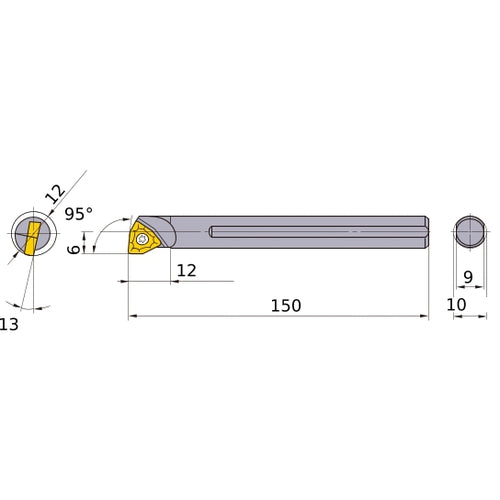

| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 150 mm |
| Frontal Edge Angle | 95 Degrees |
| Head Length (LH) | 12 mm |
| Rake Angle Radial (GAMF) | 13 Degrees |
| Shank Height (H) | 9 mm |
| Series/List # | FSWL1 |
| Functional Width (WF) | 6 mm |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 12 mm |
