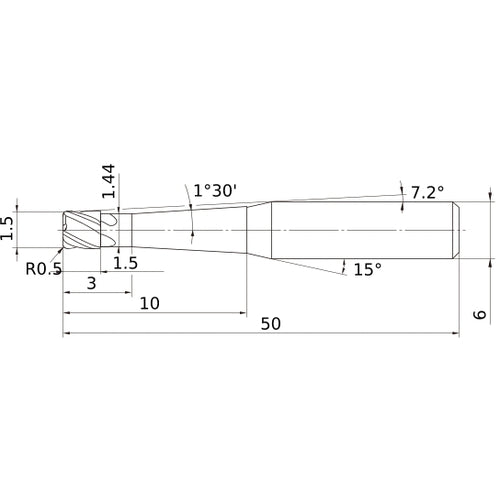

VCPSRBD0150N03L10R05 CARBIDE ENDMIL
Item #: MB03254481
Brand: Mitsubishi Materials USA
Model #: 254481
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.5 mm |
| Usable Length (LU) | 3 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 1.5 mm |
| Neck Diameter (DN) | 1.44 mm |
| Overall Length (OAL) | 50 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Coating | VC |
| Length Group | Taper Neck |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Series/List # | VCPSRB_TAPER_NECK |
