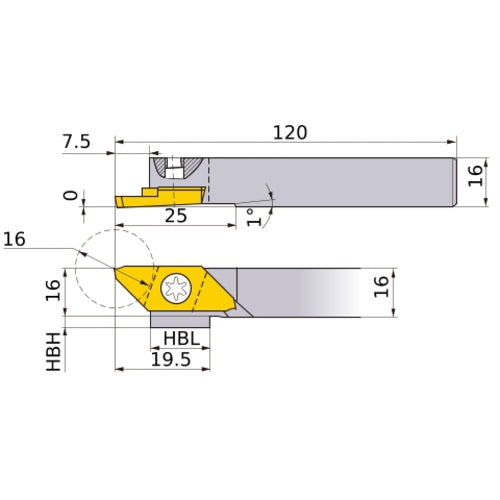

CTBHR1616-160 TURNING HOLDER
Item #: MB03273703
Brand: Mitsubishi Materials USA
Model #: 273703
| Product Specifications | |
|---|---|
| Shank Height (H) | 16 mm |
| Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 16 mm |
| Master Insert Identification (MIID) | BTBT |
| Overall Length (OAL) | 120 mm |
| Cutting Depth Maximum (CDX) | 7.5 mm |
| Functional Length (LF) | 120 mm |
| Tool Type | Turning Tool Holder |
| Head Length (LH) | 19.5 mm |
| Measurement Type | Metric |
| Functional Width (WF) | 3.4 mm |
| Series/List # | CTBH |
