MS2XLD0600N500
Item #: MB03289828
Brand: Mitsubishi Materials USA
Model #: 289828

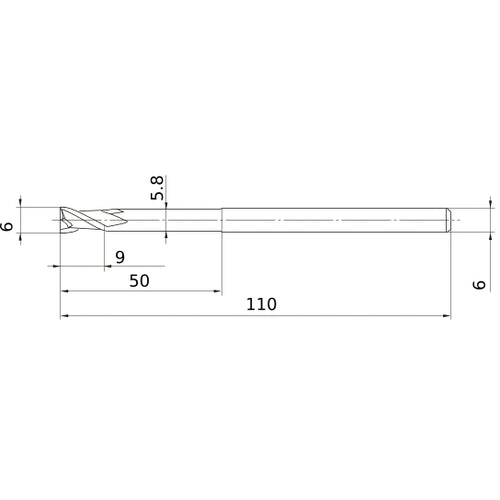

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Usable Length (LU) | 50 mm |
| Depth of Cut Maximum (APMX) | 9 mm |
| Neck Diameter (DN) | 5.8 mm |
| Overall Length (OAL) | 110 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Coating | MS |
| Length Group | Long - Necked |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | MS2XL |
