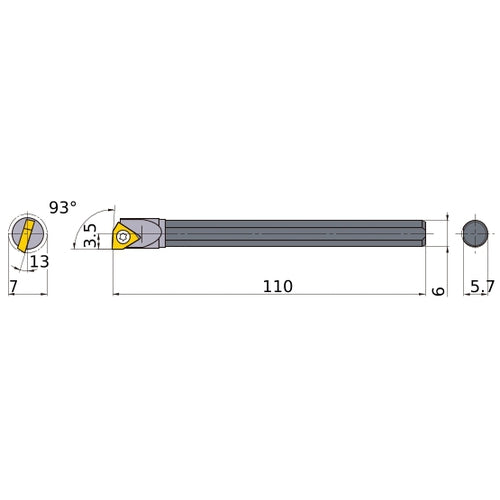

C06JSWUBR02 BORING BAR
Item #: MB03296796
Brand: Mitsubishi Materials USA
Model #: 296796
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 110 mm |
| Frontal Edge Angle | 93 Degrees |
| Shank Height (H) | 5.7 mm |
| Rake Angle Radial (GAMF) | 13 Degrees |
| Functional Width (WF) | 3.5 mm |
| Series/List # | SWUB_C |
| Minimum Bore Diameter (DMIN) | 7 mm |
| Measurement Type | Metric |
