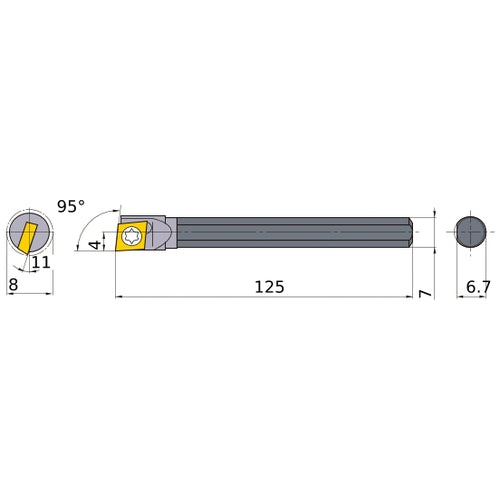

C07KSCLCR04 BORING BAR
Item #: MB03296809
Brand: Mitsubishi Materials USA
Model #: 296809
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 7 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 125 mm |
| Frontal Edge Angle | 95 Degrees |
| Shank Height (H) | 6.7 mm |
| Rake Angle Radial (GAMF) | 11 Degrees |
| Functional Width (WF) | 4 mm |
| Series/List # | SCLC_C |
| Minimum Bore Diameter (DMIN) | 8 mm |
| Measurement Type | Metric |
