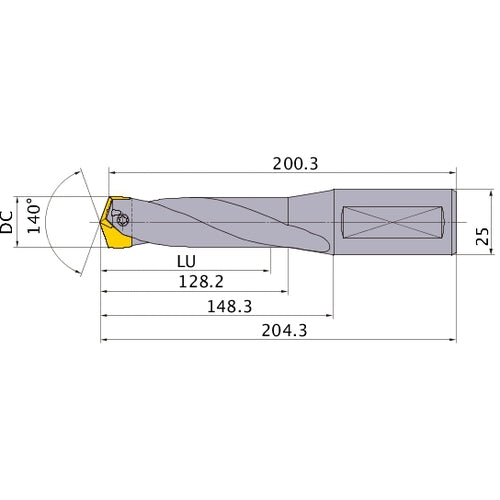

TAWMN2200S25 INDX DRILL
Item #: MB03299971
Brand: Mitsubishi Materials USA
Model #: 299971
| Product Specifications | |
|---|---|
| Usable Length (LU) | 128.2 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Group | 5D |
| Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Measurement Type | Metric |
| Protruding Length (LPR) | 148.2 mm |
| Series/List # | TAW |
| Functional Length (LF) | 200.3 mm |
| Angle | 140 Degrees |
| Overall Length (OAL) | 204.2 mm |
