M-FSVPBR-082-C BORING BAR
Item #: MB03301567
Brand: Mitsubishi Materials USA
Model #: 301567

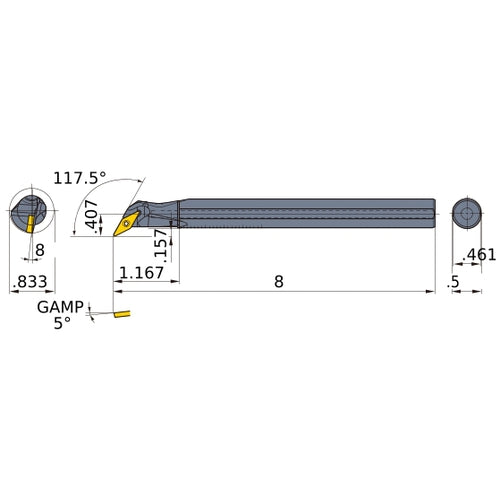

| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 8″ |
| Frontal Edge Angle | 117.5 Degrees |
| Head Length (LH) | 1.167″ |
| Rake Angle Radial (GAMF) | 8 Degrees |
| Shank Height (H) | 0.461″ |
| Series/List # | M-FSVPB_INCH |
| Functional Width (WF) | 0.407″ |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.833″ |
