M-FSDQCR-062-C BORING BAR
Item #: MB03307416
Brand: Mitsubishi Materials USA
Model #: 307416

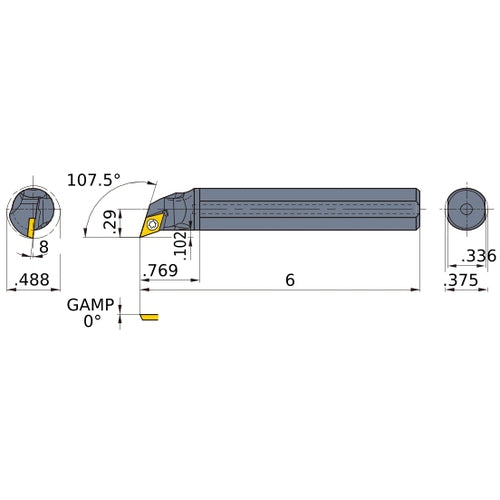

| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 6″ |
| Frontal Edge Angle | 107.5 Degrees |
| Head Length (LH) | 0.769″ |
| Rake Angle Radial (GAMF) | 8 Degrees |
| Shank Height (H) | 0.336″ |
| Series/List # | M-FSDQC_INCH |
| Functional Width (WF) | 0.29″ |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.488″ |
