SRM2200SALL INDX EM
Item #: MB03308697
Brand: Mitsubishi Materials USA
Model #: 308697

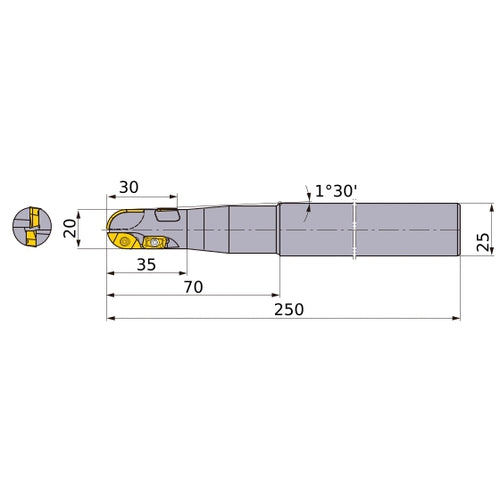

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 20 mm |
| Usable Length (LU) | 35 mm |
| Cutting Diameter (DC) | 20 mm |
| Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 4 |
| Corner Radius (RE) | 10 mm |
| Depth of Cut Maximum (APMX) | 30 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Series/List # | SRM2 |
| Head Length (LH) | 70 mm |
| Measurement Type | Metric |
| Functional Length (LF) | 250 mm |
