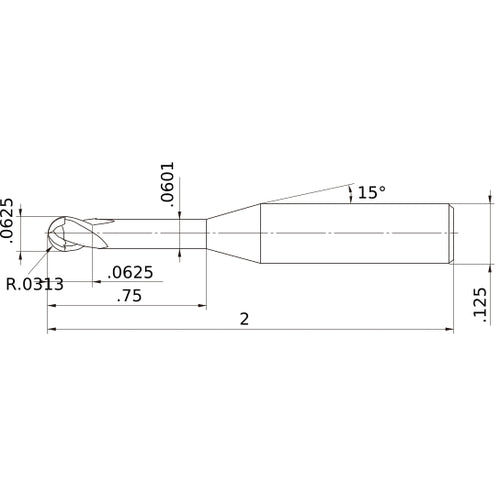

MS2XLBD1/16N0750 CARBIDE ENDMILL
Item #: MB03317024
Brand: Mitsubishi Materials USA
Model #: 317024
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/16″ |
| Corner Radius (RE) | 0.0313″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Neck Diameter (DN) | 0.0601″ |
| Depth of Cut Maximum (APMX) | 1/16″ |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 2″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Coating | MS |
| Length Group | Long - Necked |
| Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.0625″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Inch |
| End Shape | Ball |
| Series/List # | MS2XLB_INCH |
| Usable Length (LU) | 3/4″ |
