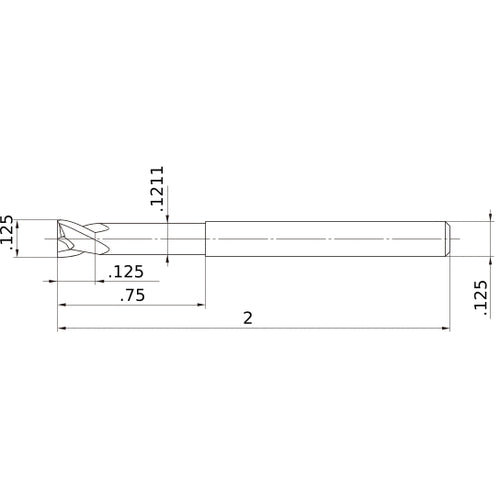

MS2XLD1/8N0750 CARBIDE ENDMILL
Item #: MB03317294
Brand: Mitsubishi Materials USA
Model #: 317294
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Neck Diameter (DN) | 0.1211″ |
| Depth of Cut Maximum (APMX) | 1/8″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Overall Length (OAL) | 2″ |
| Length Group | Long - Necked |
| Coating | MS |
| Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | MS2XL_INCH |
| End Shape | Square |
