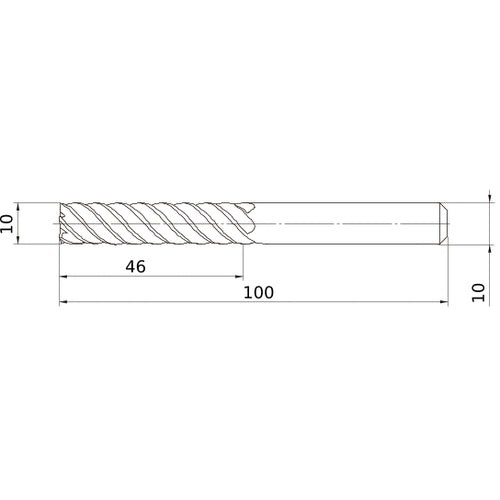

VCLDD1000
Item #: MB03328663
Brand: Mitsubishi Materials USA
Model #: 328663
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 |
| Depth of Cut Maximum (APMX) | 46 mm |
| Length Group | Long |
| Overall Length (OAL) | 100 mm |
| Measurement Type | Metric |
| Coating | VC |
| Series/List # | VCLD |
| Flute Helix Angle (FHA) | 45 Degrees |
