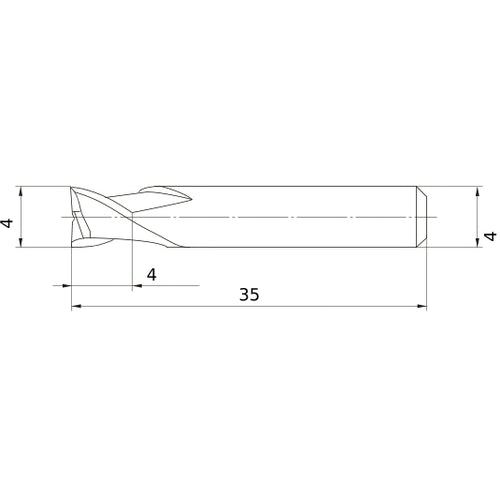

MS2ESD0400L35S04 CARBIDE ENDMILL
Item #: MB03330624
Brand: Mitsubishi Materials USA
Model #: 330624
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 4 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 4 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Overall Length (OAL) | 35 mm |
| Length Group | Extra Short |
| Coating | MS |
| Measurement Type | Metric |
| Flute Count (NOF) | 2 |
| Series/List # | MS2ES |
