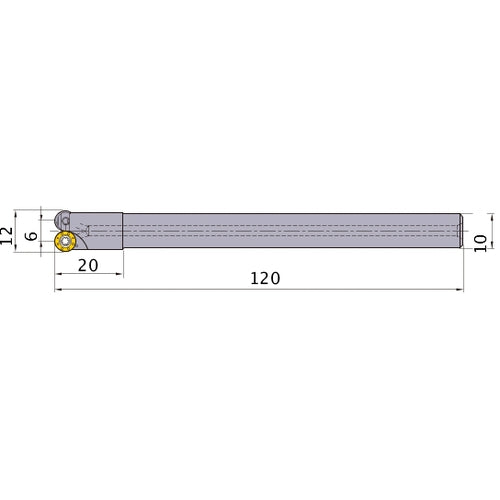

ARX30R122SA10S INDX EM
Item #: MB03336479
Brand: Mitsubishi Materials USA
Model #: 336479
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 6 mm |
| Head Length (LH) | 20 mm |
| Cutting Diameter (DC) | 6 mm |
| Functional Length (LF) | 120 mm |
| Cutting Diameter Maximum (DCX) | 12 mm |
| Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 |
| Corner Radius (RE) | 3 mm |
| Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 90 Degrees |
| Series/List # | ARX |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Measurement Type | Metric |
