CR03RS-01 TF15 BORING BAR
Item #: MB03347872
Brand: Mitsubishi Materials USA
Model #: 347872

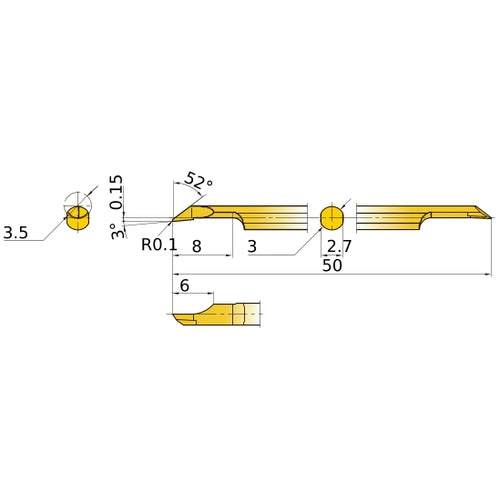

| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Functional Width (WF) | 0.15 mm |
| Minimum Bore Diameter (DMIN) | 3.5 mm |
| Usable Length (LU) | 8 mm |
| Head Length (LH) | 6 mm |
| Shank Height (H) | 2.7 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
| Grade | TF15 |
| Series/List # | CR |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Corner Radius (RE) | 0.1 mm |
| Overall Length (OAL) | 50 mm |
