SH22K-FSDUCL07 BORING BAR
Item #: MB03348816
Brand: Mitsubishi Materials USA
Model #: 348816

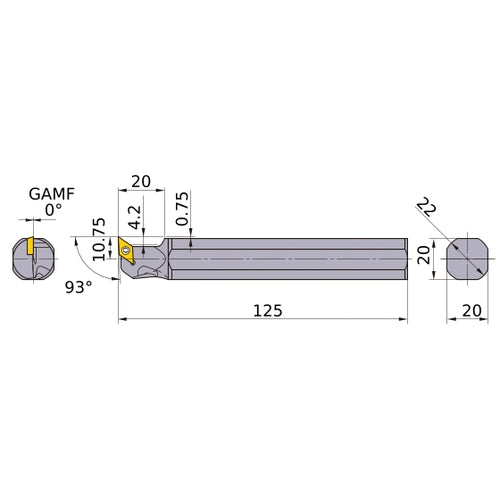

| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 22 mm |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 125 mm |
| Frontal Edge Angle | 93 Degrees |
| Head Length (LH) | 20 mm |
| Series/List # | SH |
| Shank Height (H) | 20 mm |
| Measurement Type | Metric |
| Functional Width (WF) | 10.75 mm |
| Cutting Depth Maximum (CDX) | 4.2 mm |
