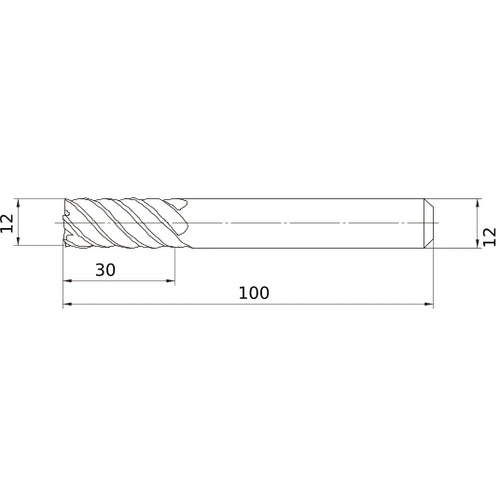

VFMDD1200 SOLID CARBIDE EM
Item #: MB03353412
Brand: Mitsubishi Materials USA
Model #: 353412
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 |
| Depth of Cut Maximum (APMX) | 30 mm |
| Length Group | Medium |
| Overall Length (OAL) | 100 mm |
| Measurement Type | Metric |
| Coating | VF |
| Series/List # | VFMD |
| Flute Helix Angle (FHA) | 45 Degrees |
