MS4SCD0300
Item #: MB03362933
Brand: Mitsubishi Materials USA
Model #: 362933

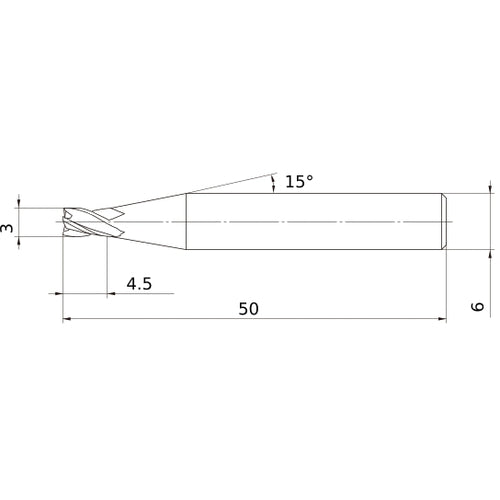

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 4.5 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Overall Length (OAL) | 50 mm |
| Length Group | Short |
| Coating | MS |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Series/List # | MS4SC |
| Flute Helix Angle (FHA) | 30 Degrees |
