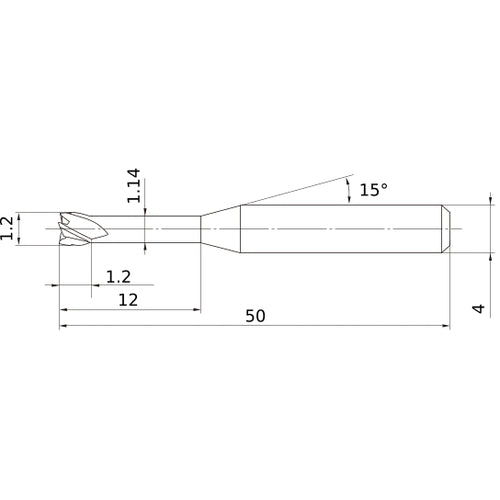

MS4XLD0120N120 1.2MM CBD
Item #: MB03363119
Brand: Mitsubishi Materials USA
Model #: 363119
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.2 mm |
| Usable Length (LU) | 12 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Neck Diameter (DN) | 1.14 mm |
| Depth of Cut Maximum (APMX) | 1.2 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 50 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Coating | MS |
| Tool Type | Solid Carbide Endmill |
| Flute Count (NOF) | 4 |
| Length Group | Long - Necked |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Metric |
| End Shape | Center Cutting |
| Series/List # | MS4XL |
