MS4XLD0600N200
Item #: MB03363928
Brand: Mitsubishi Materials USA
Model #: 363928

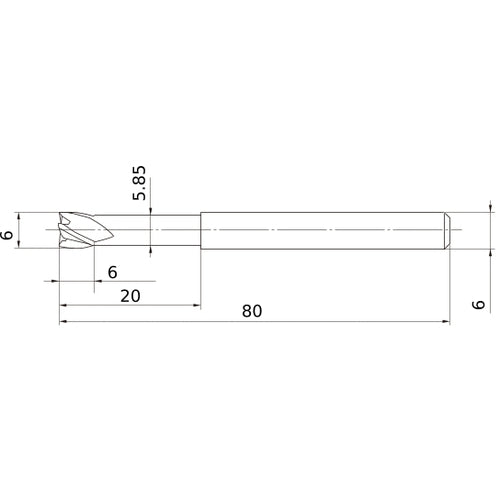

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Usable Length (LU) | 20 mm |
| Depth of Cut Maximum (APMX) | 6 mm |
| Neck Diameter (DN) | 5.85 mm |
| Overall Length (OAL) | 80 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Coating | MS |
| Length Group | Long - Necked |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | MS4XL |
