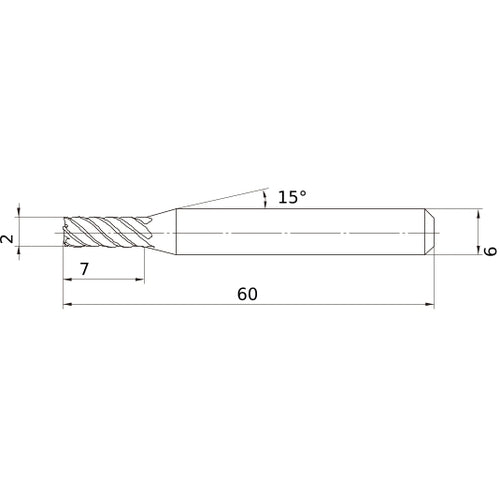

VFMDD0200 SOLID CARBIDE EM
Item #: MB03372656
Brand: Mitsubishi Materials USA
Model #: 372656
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 2 mm |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 7 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Overall Length (OAL) | 60 mm |
| Length Group | Medium |
| Coating | VF |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | VFMD |
