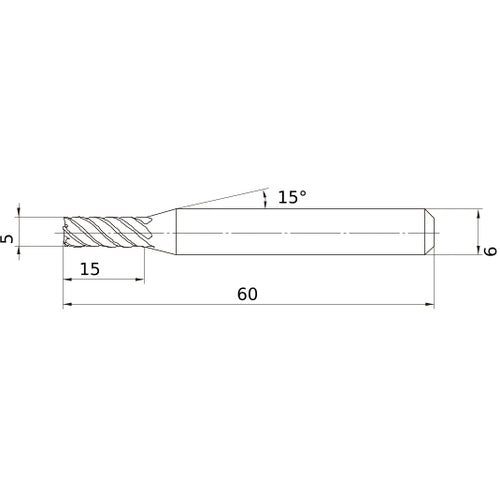

VFMDD0500 SOLID CARBIDE EM
Item #: MB03372681
Brand: Mitsubishi Materials USA
Model #: 372681
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5 mm |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 15 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 |
| Overall Length (OAL) | 60 mm |
| Length Group | Medium |
| Coating | VF |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees |
| Series/List # | VFMD |
