VF2XLBR0020N020S06 SOLID CARB EM
Item #: MB03378804
Brand: Mitsubishi Materials USA
Model #: 378804

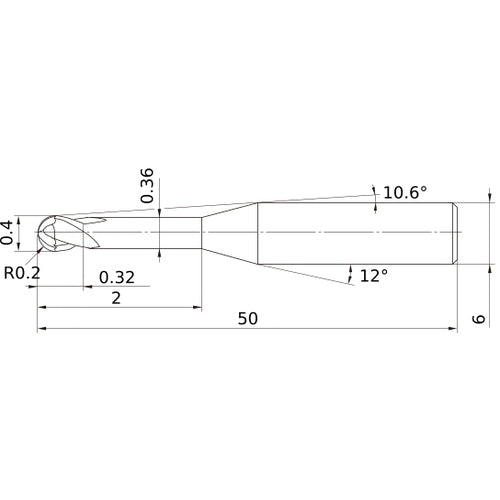

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.4 mm |
| Usable Length (LU) | 2 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Corner Radius (RE) | 0.2 mm |
| Depth of Cut Maximum (APMX) | 0.32 mm |
| Neck Diameter (DN) | 0.36 mm |
| Overall Length (OAL) | 50 mm |
| Body Half Taper Angle (BHTA) | 12 Degrees |
| Coating | VF |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Flute Count (NOF) | 2 |
| Length Group | Long - Necked |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Metric |
| End Shape | Ball |
| Series/List # | VF2XLB |
