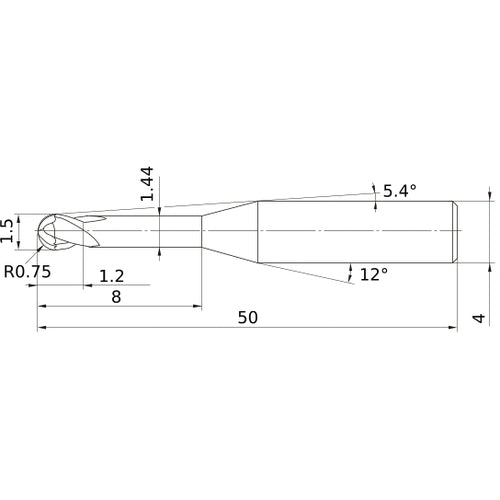

1.5 mm Dia. × 4 mm Shank × 1.2 mm DOC × 50 mm OAL, Carbide Impact Miracle, 2 Flute, 30° Helix, Ballnose End Mill VF2XLBR0075N080S04
Item #: MB03379372
Brand: Mitsubishi Materials USA
Model #: 379372
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.5 mm |
| Corner Radius (RE) | 0.75 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Neck Diameter (DN) | 1.44 mm |
| Depth of Cut Maximum (APMX) | 1.2 mm |
| Body Half Taper Angle (BHTA) | 12 Degrees |
| Overall Length (OAL) | 50 mm |
| Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Long - Necked |
| Coating | VF |
| End Shape | Ball Nose |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | VF2XLB |
| Usable Length (LU) | 8 mm |
