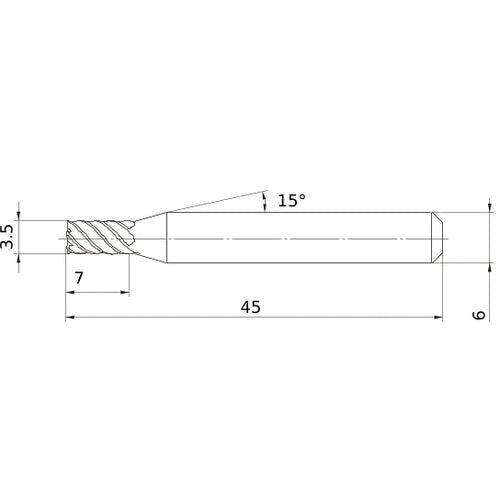

VFSDD0350 SOLID CARBIDE EM
Item #: MB03379874
Brand: Mitsubishi Materials USA
Model #: 379874
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3.5 mm |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 7 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 |
| Overall Length (OAL) | 45 mm |
| Length Group | Short |
| Coating | VF |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees |
| Series/List # | VFSD |
