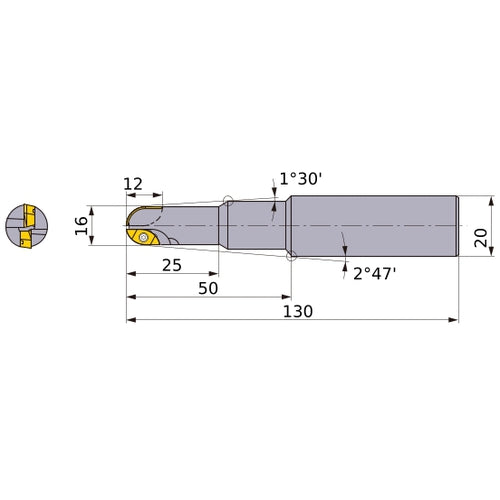

SRM2160SAM INDX EM
Item #: MB03382993
Brand: Mitsubishi Materials USA
Model #: 382993
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 16 mm |
| Usable Length (LU) | 25 mm |
| Cutting Diameter (DC) | 16 mm |
| Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 |
| Corner Radius (RE) | 8 mm |
| Depth of Cut Maximum (APMX) | 12 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Series/List # | SRM2 |
| Head Length (LH) | 50 mm |
| Measurement Type | Metric |
| Functional Length (LF) | 130 mm |
