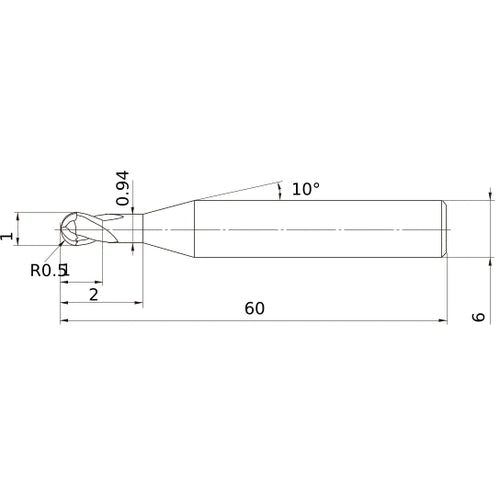

1 mm Dia. × 6 mm Shank × 1 mm DOC × 60 mm OAL, Carbide Impact Miracle, 2 Flute, 30° Helix, Ballnose End Mill VF2SDBLR0050
Item #: MB03422115
Brand: Mitsubishi Materials USA
Model #: 422115
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1 mm |
| Usable Length (LU) | 2 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 1 mm |
| Neck Diameter (DN) | 0.94 mm |
| Overall Length (OAL) | 60 mm |
| Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | Impact Miracle |
| Decimal Equivalent | 0.0394″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
