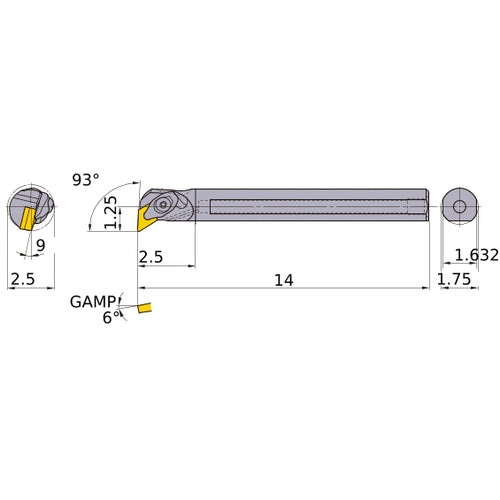

S-DDUNL-284-C BORING BAR
Item #: MB03429608
Brand: Mitsubishi Materials USA
Model #: 429608
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1-3/4″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 14″ |
| Frontal Edge Angle | 93 Degrees |
| Shank Height (H) | 1.632″ |
| Rake Angle Radial (GAMF) | 9 Degrees |
| Functional Width (WF) | 1-1/4″ |
| Series/List # | S-DDUN_INCH |
| Minimum Bore Diameter (DMIN) | 2-1/2″ |
| Measurement Type | Inch |
