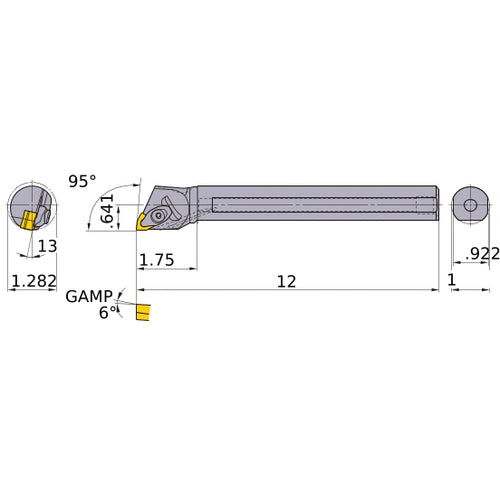

S-DWLNR-163-C BORING BAR
Item #: MB03429819
Brand: Mitsubishi Materials USA
Model #: 429819
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 12″ |
| Frontal Edge Angle | 95 Degrees |
| Shank Height (H) | 0.922″ |
| Rake Angle Radial (GAMF) | 13 Degrees |
| Functional Width (WF) | 0.641″ |
| Series/List # | S-DWLN_INCH |
| Minimum Bore Diameter (DMIN) | 1.282″ |
| Measurement Type | Inch |
