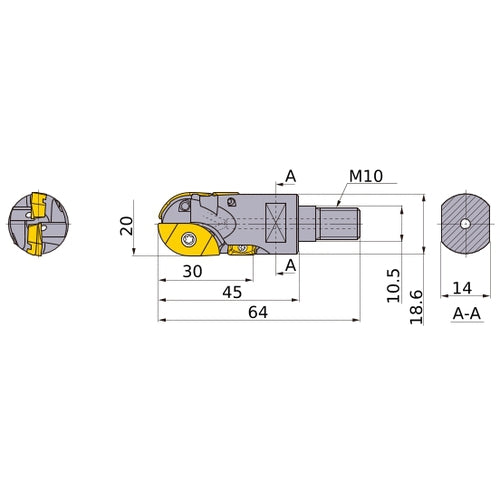

SRM2200AM10L45 INDX EM
Item #: MB03454125
Brand: Mitsubishi Materials USA
Model #: 454125
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 20 mm |
| Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 20 mm |
| Body Diameter (BD) | 18.6 mm |
| Cutting Item Count (CICT) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 30 mm |
| Series/List # | SRM2 |
| Overall Length (OAL) | 64 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10.5 mm |
| Connection Retention Knob Thread Size (CRKS) | M10 |
| Functional Length (LF) | 45 mm |
