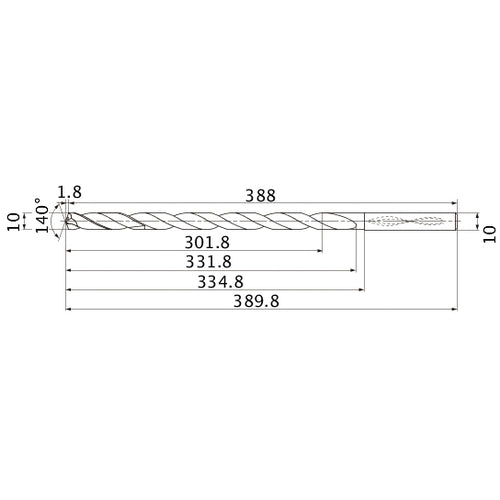

MNS1000X30DB TF15 10 mm Dia. × 10 mm Shank × 331.8 mm Flute Length × 389.8 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03467196
Brand: Mitsubishi Materials USA
Model #: 467196
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 10 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10 mm |
| Cutting Edge Material | Carbide |
| Length Group | 30xD |
| Grade | TF15 |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Series/List # | MNS |
| Head Length (LH) | 334.8 mm |
| Usable Length (LU) | 301.8 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 331.8 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 389.8 mm |
| Point Length (PL) | 1.8 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 388 mm |
| Feature | Four coolant holes is ideal for MQL applications |
