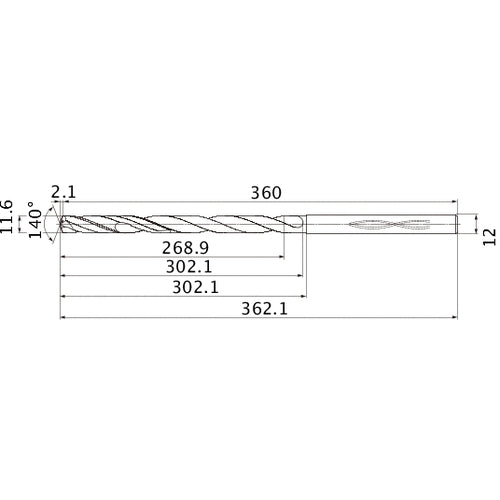

MHS1160L300B CARB DRILL
Item #: MB03481246
Brand: Mitsubishi Materials USA
Model #: 481246
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 11.6 mm |
| Flute Helix Angle (FHA) | 25 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.6 mm |
| Cutting Edge Material | Carbide |
| Length Group | 23xD |
| Grade | VP15TF |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Series/List # | MHS |
| Head Length (LH) | 302.1 mm |
| Usable Length (LU) | 268.9 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 302.1 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 362.1 mm |
| Point Length (PL) | 2.1 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 360 mm |
