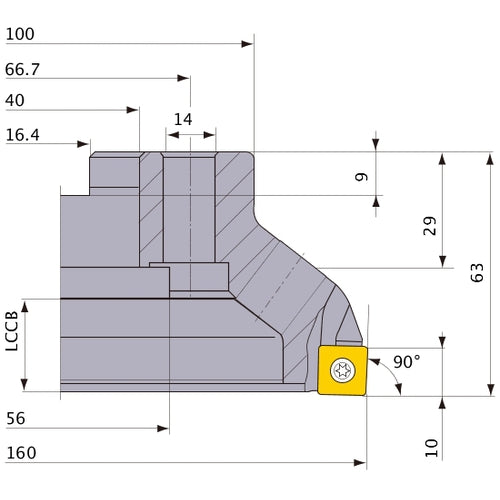

ASX400-160C08R MILL
Item #: MB03490046
Brand: Mitsubishi Materials USA
Model #: 490046
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 160 mm |
| Measurement Type | Metric |
| Cutting Diameter (DC) | 160 mm |
| Functional Length (LF) | 63 mm |
| Depth of Cut Maximum (APMX) | 10 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Series/List # | ASX400_MM |
| Cutting Direction (HAND) | Right Hand |
