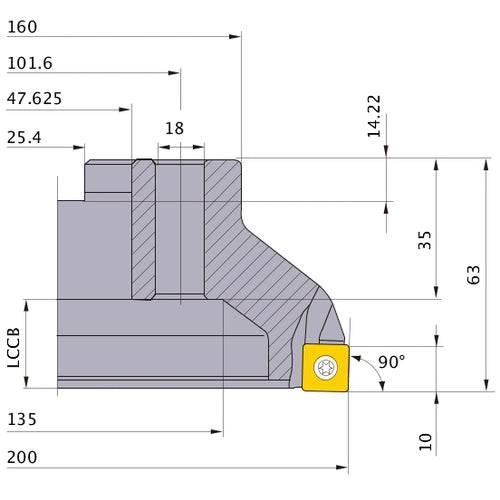

ASX400R20016K MILL
Item #: MB03490151
Brand: Mitsubishi Materials USA
Model #: 490151
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 200 mm |
| Measurement Type | Metric |
| Cutting Diameter (DC) | 200 mm |
| Functional Length (LF) | 63 mm |
| Depth of Cut Maximum (APMX) | 10 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 47.625 mm |
| Series/List # | ASX400 |
| Cutting Direction (HAND) | Right Hand |
